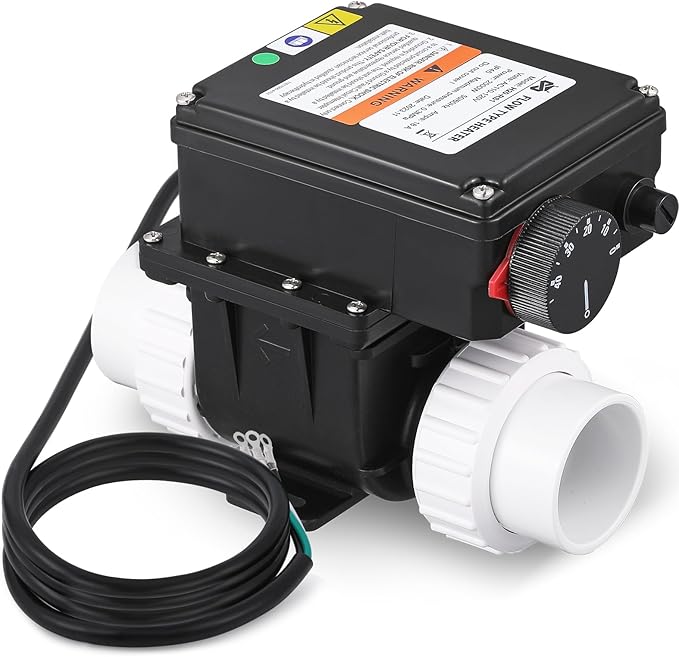

Mxmoonant Hot Tub Thermostat, 2KW 110V Spa Bathtub Heater Thermostat with Temperature Control for 400 Gals Hot Tub, Whirlpool
- [Constant Temperature Control]: Use the temperature knob to set and maintain the desired water temperature from 0 to 45°C. Once the desired temperature is set, the thermostat continuously monitors and adjusts the operati
- [Connect with Circulation Pump]: Spa heater have to connected with circulation pump with power of more than 0.5HP. Smaller pumps may not provide enough water flow to activate the heater. Also, the spa thermostat has to b
- [1.5" PVC plumbing]: Mxmoonant hot tub heater is equipped with 1.5" PVC pipe fittings, so you should use SCH 40 1.5" PVC pipe for the plumbing connection. A smaller size may result in insufficient water flow. If you want
- [Tips for Heating]: It's recommended to fill the hot tub with hot water instead of cold water, as cold water can impact the heating performance. Additionally, it's advisable to limit the water capacity to no more than 40
- [No Plug]: The pool thermostat does not come with a plug as it is a high power device. It should be connected to a 25A GFCI circuit breaker. It is recommended that you find a professional electrician to complete the circ
Why Is My Hot Tub Overheating?
A hot tub that gets hotter than its set temperature typically has one of three problems. The first is a simple settings issue that costs nothing to fix. The other two common causes are a failed temperature sensor or a stuck heater relay. Both are common wear items and are relatively inexpensive parts to replace yourself. Before you start any diagnosis that involves opening the equipment panel, make sure you turn off the power to the hot tub at the breaker. Your safety comes first.
Cause 1: Incorrect Settings or Long Filter Cycles
Sometimes the problem is not a broken part. It's just a matter of settings. Your hot tub's pump creates heat through friction as it circulates water. During long, programmed filter cycles, this friction can generate a surprising amount of heat. In the winter, this helps maintain the temperature. In the summer, it can push the water temperature several degrees above your set point, especially during a hot afternoon.
Many modern hot tubs also have different operating modes, such as Standard, Economy, or Sleep. Standard mode heats the water whenever necessary to maintain the set temperature. Economy mode only heats the water during programmed filter cycles. If your tub is in standard mode and also has long filter cycles on a hot day, it can easily overheat.
How to Test for a Settings Problem
This diagnosis is simple. You just need to check your control panel. Look for the settings related to filtration cycles. See how long they are set to run and how frequently. It is common for them to be set for two hours, twice a day. If yours are set for much longer, this could be the source of your excess heat.
How to Fix It
The solution is to adjust the programming. Reduce the duration or frequency of the filter cycles. For most hot tubs, running a filter cycle for one to two hours, twice per day, is sufficient. You can try cutting the time in half to see if the overheating problem resolves. You can also check your hot tub's operating mode and switch it to an Economy or Sleep setting during warmer months to prevent the heater from kicking on unnecessarily outside the filter cycles. Refer to your owner's manual for specific instructions on changing these settings.
Cost to Fix: $0
Cause 2: Faulty Temperature Sensor
Your hot tub has at least one temperature sensor. This small probe sits in the water path and tells the main controller what the current water temperature is. The controller uses this information to decide when to turn the heater on and off. If this sensor fails, it can send an inaccurate, low temperature reading to the controller. The controller, thinking the water is cold, will keep the heater running continuously. This constant heating will raise the water temperature far beyond your desired setting.
Most modern spas have a second sensor called a high-limit sensor. This is a safety device that shuts the system down if the temperature reaches a dangerous level, typically around 118°F. If your tub is overheating but not shutting down completely, the primary temperature sensor is the most likely culprit. Sometimes these two sensors are sold together as a single part.
How to Test for a Faulty Sensor
The first clue is often an error code on your topside control panel. Codes like "OH" (Overheat), "HH" (High Heat), "SN," "SNA," or "SNB" often point directly to a sensor or high-limit problem. The exact code varies by manufacturer.
If there is no error code, you can perform a simple test. Use a reliable digital thermometer or an analog floating thermometer to measure the actual temperature of the water. Then, compare that reading to the temperature displayed on your hot tub's control panel. If the actual temperature is significantly different from the displayed temperature, for example, the water is 106°F but the display reads 98°F, the sensor is bad. It needs to be replaced.
How to Fix It
Replacing a temperature sensor is a common DIY job for hot tub owners. After shutting off the power, you will locate the sensor, which is typically screwed into the heater tube or a plumbing line. You will unplug its cord from the main circuit board, unscrew the old sensor, and install the new one. Make sure to use the new O-rings that come with the replacement part to prevent leaks.
For this repair, a reliable replacement part is essential. Based on user reviews and specifications, the Hot Tub Heating Sensor Parts Replacement for Balboa Spa Heater M7 System is a top choice for spas using the common Balboa control system. This kit includes both the temperature and high-limit sensors, along with the necessary mounting hardware. It is designed to fix "HH" and "SN" error codes. A relay is an electromechanical switch on the main circuit board. The spa controller sends a low-voltage signal to the relay, which closes a high-voltage circuit to turn the heater on. Over time, the contacts inside the relay can become corroded or fused together. When this happens, the relay gets stuck in the "on" position. The heater receives power continuously, even when the controller is telling it to shut off.
How to Test for a Stuck Relay
This test can definitively identify a stuck relay. With the hot tub powered on, turn the set temperature on your control panel all the way down. Set it to a temperature well below the current water temperature, like 80°F. The "heat on" indicator light on the display should turn off. Now, listen carefully to the equipment bay. If you can still hear a low humming sound from the heater assembly, the relay is stuck. The heater is still on. If you have an opposite problem where your hot tub is not heating, the relay could be stuck in the open position.
For those comfortable with electrical testing, you can confirm this with a multimeter. Turn off the power at the breaker. Access the circuit board and identify the heater relay. Check for continuity between the two high-voltage terminals for the heater. If the multimeter shows continuity (a closed circuit), the relay is stuck.
How to Fix It
You have two options to fix a stuck relay. The first is to replace only the relay itself. This requires desoldering the old relay from the circuit board and soldering a new one in its place. This is an inexpensive fix if you have the tools and skills, as the relay itself only costs about $10 to $30. The second option is to replace the entire circuit board. This is much easier, as it only involves unplugging wires from the old board and plugging them into the new one. However, a new circuit board is significantly more expensive.
Cost to Fix:
- DIY: A new relay costs $10 to $30. A new circuit board costs $250 to $600.
- Professional: Hiring a technician for soldering work or a board replacement will typically cost $150 to $400 in labor.
Cause 4: External Factors and Water Flow
Sometimes the cause of overheating is not a faulty part but an environmental factor or a maintenance issue. Direct, intense sunlight on a dark-colored hot tub cover can raise the water temperature through solar gain, acting like a passive solar heater. This is especially true in hot climates.
Poor water flow can also contribute. A dirty, clogged filter makes the pump work harder to circulate water. This extra work generates more heat, which is transferred to the water. In some cases, this can be enough to raise the temperature a few degrees. If you notice your filter pressure is too high, it's a clear sign of restricted flow.
Finally, consistently poor water chemistry can damage components over time. For instance, if your hot tub acid too high (meaning the pH is too low), the acidic water can corrode metal parts, including the delicate surfaces of temperature sensors and heater elements. This corrosion can lead to malfunctions and inaccurate readings. Maintaining proper pH and alkalinity is key to equipment longevity. You can find principles for managing acidity in this guide to lowering pool pH, which also apply to spas.
How to Diagnose and Fix
- Solar Gain: Check the water temperature in the morning before the sun has been on the cover. If it is normal then but overheats by late afternoon, solar gain is likely the cause. Try venting the cover for an hour or two during the hottest part of the day.
- Clogged Filter: Remove and inspect your hot tub filter. If it is dirty, clean it thoroughly with a filter cleaner or replace it if it is more than a year old.
- Water Chemistry: Use a quality test kit to check your spa's pH, alkalinity, and sanitizer levels. Adjust as needed to bring them into the recommended ranges.
Cost to Fix: $0 for venting the cover. $25 to $60 for a new filter or water balancing chemicals.
When to Call a Hot Tub Technician
If you have walked through these diagnostic steps and still cannot find the problem, it may be time to call a professional. You should also call a technician if you are not comfortable performing electrical work, such as replacing a circuit board or testing relays with a multimeter. A qualified spa technician has the diagnostic tools and experience to pinpoint complex problems quickly. By systematically testing the settings, sensors, and relays, you can often identify the source of the problem. Many of these repairs are simple and can be completed without a costly service call.
