A pool system that turns on but fails to circulate water can be frustrating, often signaling an issue with either the pool pump or its motor. Understanding the distinction between these two components is key to identifying the right repair and avoiding unnecessary expenses. For homeowners seeking a direct motor replacement for specific Hayward pumps, the Hayward SP1610Z1MBK Motor Replacement, a robust 1.0 HP Maxrate motor made in the United States, stands out as the top recommendation for its reliability and direct compatibility.
Pool Pump vs. Pool Motor: Clarifying the Confusion
Many pool owners use the terms 'pool pump' and 'pool motor' interchangeably, but they refer to distinct parts of your pool's circulation system. Recognizing the difference is essential for accurate troubleshooting and cost effective repairs.
What is a Pool Pump?
A pool pump is the complete unit responsible for moving water through your filtration system. It consists of several main components:
- The Volute or Wet End: This is the part of the pump that houses the impeller and is designed to create suction and push water. It includes the strainer basket, pump housing, and impeller.
- The Impeller: A rotating disc with vanes that creates centrifugal force to draw water in and push it out.
- The Motor: The electrical component that spins the impeller.
- The Seal Assembly: Prevents water from leaking from the wet end into the motor.
When you replace a 'pool pump', you are replacing the entire assembly, including the motor and wet end. This is often necessary if the pump housing is cracked, the impeller is severely damaged, or the motor has failed beyond repair and a direct replacement is not feasible or cost effective.
What is a Pool Motor?
The pool motor is the electrical heart of the pump system. Its sole function is to provide the rotational power that spins the impeller. Motors come in various horsepower ratings, voltage requirements, and frame sizes (such as 48Y vs. 56Y frame, which refers to the motor's mounting dimensions). A motor typically includes:
- The stator and rotor (electrical components that generate torque).
- Bearings (allow the rotor to spin smoothly).
- A fan (for cooling).
- A shaft that connects to the impeller.
Replacing just the motor, instead of the entire pump, can save money if the wet end components (housing, impeller, seals) are still in good condition. Common signs of a failing motor include grinding noises, humming without spinning, or simply not turning on. If your above ground pool pump is making noise, it could very well be a motor issue.
When to Replace the Motor vs. the Entire Pump
Deciding between replacing the motor or the entire pump often depends on the specific symptoms and the overall condition of your equipment. A service call from a pool technician typically costs $80-$150, plus labor, so diagnosing the issue yourself can save money.
Replace the Motor When:
- The motor hums but the impeller does not spin.
- The motor makes loud grinding or squealing noises.
- The motor trips the circuit breaker repeatedly.
- Water leaks from the motor shaft seal, but the pump housing is intact.
- The pump's wet end (housing, impeller, basket) is in good condition.
Replacing a motor can be a DIY project for those comfortable with electrical work and plumbing, but it requires careful attention to detail, especially when matching the frame size (like 48Y vs 56Y) and horsepower. For guidance on setup, consider reviewing articles like How to Set Up an Above Ground Pool Pump Correctly.
Replace the Entire Pump When:
- The pump housing is cracked or damaged beyond repair.
- The impeller is severely broken or corroded.
- The pump is old, inefficient, and you want to upgrade to a more energy-efficient model (like a variable-speed pump).
- Multiple components of the wet end are failing.
- It is more cost effective to replace the whole unit than to replace a motor and other worn wet-end parts.
For a detailed breakdown of costs, refer to our article on the Cost to Replace a Pool Pump.
Top Pool Motor and Pump Options for 2026
Here, we compare leading options for both motor replacements and full pump units, helping you choose the best fit for your pool's needs.
TOP PICK: Hayward SP1610Z1MBK Motor Replacement
The Hayward SP1610Z1MBK Motor Replacement is specifically designed for select Hayward pump models, offering a reliable solution for a failing motor. It is not a universal motor.
Best For:
This motor is ideal for Hayward pump owners whose wet end is in good condition but whose motor has failed. It offers a cost effective alternative to replacing the entire pump, especially when the existing pump housing and impeller are still functional. It is a solid choice for those who want to maintain their current pump system and only replace the power source.

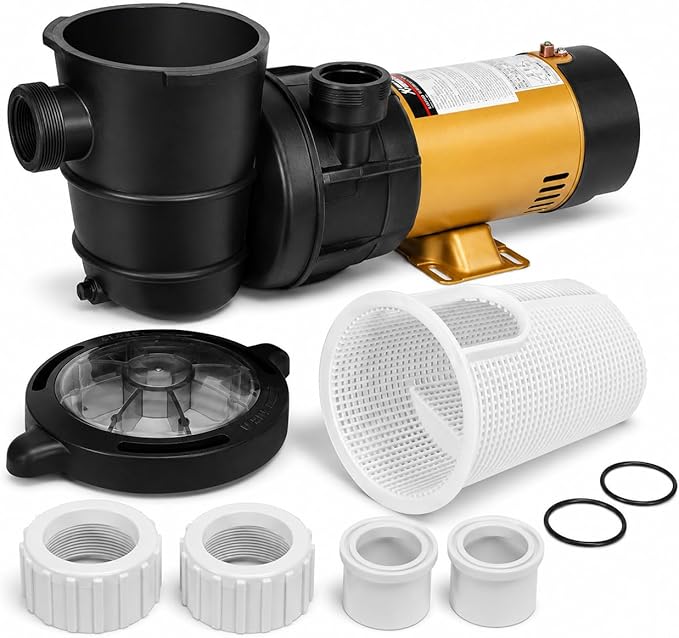

Option 2: XtremepowerUS 1.5HP Variable 2-Speed Above Ground Swimming Pool Pump
The XtremepowerUS 1.5HP Variable 2-Speed Above Ground Swimming Pool Pump is a complete pump unit designed for above-ground pools. It includes both the motor and the wet end, offering a full replacement solution for those needing an entirely new pump.
Strengths:
- Complete Unit: This product is a full pump, providing everything needed to replace an old or broken above-ground pool pump.
- Powerful 1.5 HP Copper Motor: The motor is robust, featuring a copper winding for durability and efficient operation.
- Dual Speed Settings: The built-in 2-speed settings allow users to switch between low and high speeds. This offers better control over water flow and can save energy during periods when less filtration is needed.
- Effortless Installation: The pump comes with 1.5-inch adapters, making installation simpler for many standard above-ground pool setups.
- Self-Priming: This feature simplifies startup and helps prevent issues like a pool pump not priming.
Weaknesses:
- Above-Ground Specific: Primarily designed for above-ground pools, it may not be suitable for all in-ground pool applications.
- Higher Initial Cost: As a complete unit, its initial cost will be higher than a motor-only replacement.
Best For:
This pump is an excellent choice for owners of above-ground pools who need to replace their entire pump system due to age, damage, or inefficiency. Its dual-speed motor offers flexibility and potential energy savings, making it a smart upgrade for those looking to improve their filtration system's performance and efficiency.
Option 3: Century B2854 1-1/2 HP, 56Y Frame, Square Flange Pool Motor
The Century B2854 is a standalone motor designed as a replacement for various pool pumps. This 1-1/2 HP motor features a 56Y frame and a square flange, making it compatible with a wide range of pump wet ends that use this configuration.
Strengths:
- High Horsepower: The 1-1/2 HP rating provides strong performance for many residential pool applications, including those requiring more powerful circulation.
- Standard Frame Size (56Y): The 56Y frame with a square flange is a common configuration, allowing it to replace many older Century B854 motors and other brands with similar specifications.
- Versatile Voltage: Operates at 230/115 volts, offering flexibility for different electrical setups.
- ODP Enclosure: The Open Drip Proof (ODP) enclosure provides protection against dripping liquids while allowing for air circulation to cool the motor.
Weaknesses:
- Motor Only: Like the Hayward option, this is a motor replacement, meaning you must have a functional wet end to pair it with.
- Requires Matching: While a common frame, pool owners must verify their existing pump's wet end is compatible with a 56Y frame and square flange for proper fit.
Best For:
The Century B2854 is ideal for pool owners who need to replace a high-horsepower motor on an existing pump that uses a 56Y frame and square flange. It is a good option for those seeking a powerful and versatile replacement motor, especially if their original motor was a Century B854 or a similar model from another brand. It suits pool owners confident in matching motor specifications to their current pump setup.
Comparison Table: Pool Pump vs. Pool Motor Options
To help visualize the differences, here's a side-by-side comparison of the key features of these products:
| Feature | Hayward SP1610Z1MBK Motor Replacement | XtremepowerUS 1.5HP Variable 2-Speed Above Ground Swimming Pool Pump | Century B2854 Pool Motor |
|---|---|---|---|
| Product Type | Motor Only | Complete Pump Unit | Motor Only |
| Horsepower | 1.0 HP Maxrate | 1.5 HP | 1-1/2 HP |
| Speed Settings | Single Speed (depends on pump) | Variable 2-Speed | Single Speed (PSC) |
| Frame Type | Specific to Hayward pumps | Integrated (for above ground pump) | 56Y Frame, Square Flange |
| Voltage | Varies by specific pump model | 115V (typical for above ground) | 230/115 volts |
| Enclosure | ODP (Open Drip Proof) | TEFC (Totally Enclosed Fan Cooled) | ODP (Open Drip Proof) |
| Application | Replacement for select Hayward in-ground/above-ground pumps | Above Ground Swimming Pools | Replacement for various in-ground/above-ground pumps |
| Origin | Made in United States | Manufacturer data indicates general manufacturing | Manufacturer data indicates general manufacturing |
Choosing the Right Component for Your Pool
The decision to purchase a new pool pump vs pool motor replacement comes down to diagnosing the specific problem. If your existing pump's wet end is functional and in good shape, a motor replacement like the Hayward SP1610Z1MBK or the Century B2854 can be a more economical choice. These options save you money by allowing you to reuse the pump housing and impeller.
However, if the entire pump is old, inefficient, or has significant damage to the housing or impeller, replacing the complete unit with something like the XtremepowerUS 1.5HP Variable 2-Speed Above Ground Swimming Pool Pump is the better course of action. This provides a fresh start with potentially improved efficiency and performance, especially if you are upgrading from an older single-speed model.
Key Considerations for Replacement:
- Compatibility: Always verify the frame size (e.g., 48Y vs 56Y frame), horsepower, and voltage requirements to match your existing pump's wet end or electrical supply.
- Efficiency: Variable-speed pumps, even for above-ground models, can offer substantial energy savings over single-speed units.
- Installation: While replacing a motor can be a DIY task for experienced individuals, a full pump replacement might be simpler for beginners, or it might require professional installation. Professional labor for pump or motor replacement can add $200-$400 to the overall cost, in addition to the service call fee.
- Longevity: Proper installation and regular maintenance, such as keeping the pump basket clean and ensuring good airflow around the motor, will extend the life of your new component.
Final Thoughts
Understanding the distinction between a pool pump vs. pool motor is fundamental to making informed repair decisions. For a direct motor replacement for compatible Hayward pumps, the Hayward SP1610Z1MBK Motor Replacement stands as the top recommendation due to its quality and specific design. For those needing a complete above-ground pump, the XtremepowerUS 1.5HP Variable 2-Speed Above Ground Swimming Pool Pump offers a robust and efficient solution. Finally, the Century B2854 Pool Motor provides a powerful and versatile motor-only option for many standard pump setups. Evaluate your specific needs, assess the condition of your existing equipment, and choose the component that provides the most efficient and cost effective solution for your pool.
