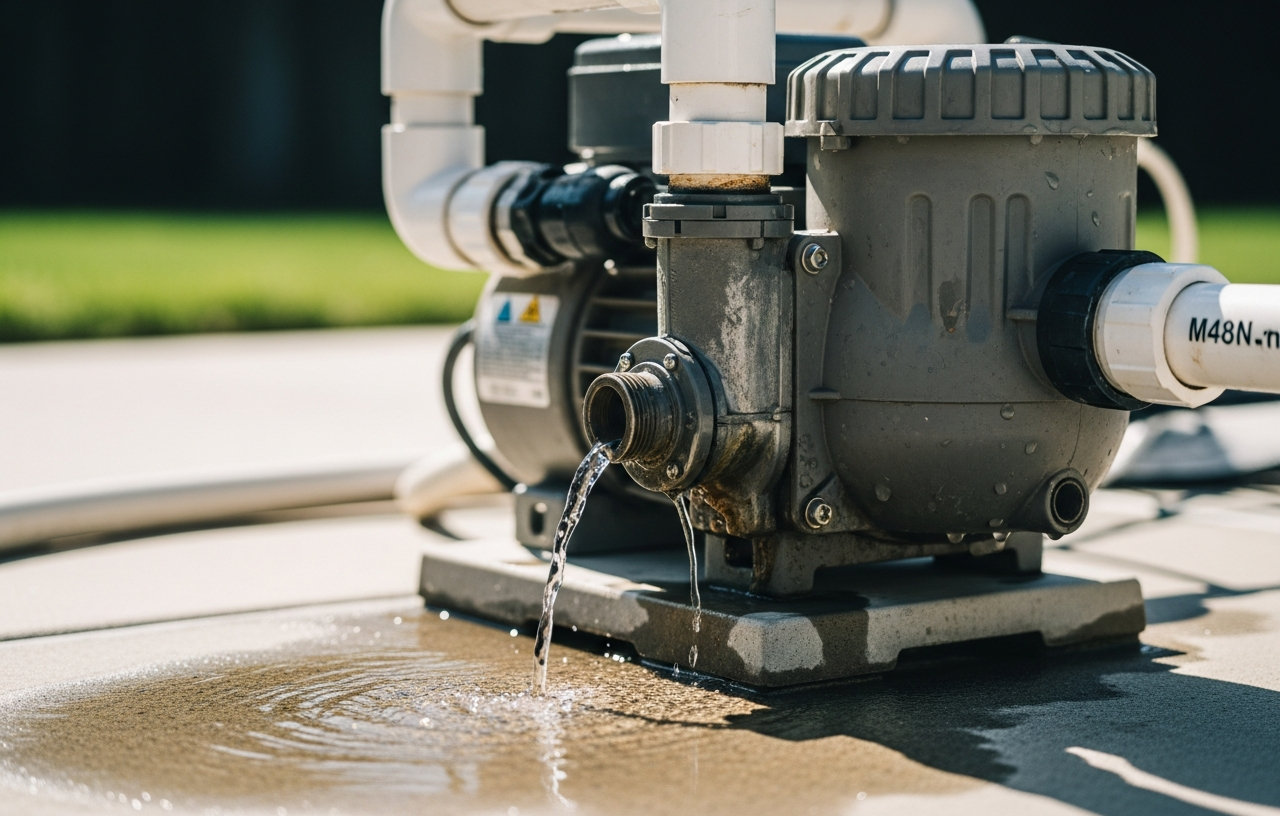

Seeing water collect around your pool pump after it runs indicates a problem that needs attention. Ignoring a pool pump leak can lead to higher water bills, reduced pump efficiency, and even permanent damage to the pump's motor, which is not designed to get wet. Most leaks are simple to diagnose and often fixable with basic tools and replacement parts.
Before you begin any work, always turn off the power to your pool pump at the circuit breaker. This prevents accidental electrocution and motor damage. Safety is always the top priority.
Diagnosing the Source of Your Pool Pump Leak
The first step in fixing a leak is finding its exact location. Many leaks are visible, but some might only appear when the pump is running or under pressure. Dry off the entire pump and its surrounding area. Run the pump and carefully observe where the water emerges. Pay close attention to connections, seals, and the pump housing itself. Sometimes, a small drip can quickly become a stream.
You can also use a piece of paper towel or tissue to dab around suspected areas. The paper will quickly show where water is present, even a tiny seep.
Common Reasons Your Pool Pump Leaks Water and How to Fix Them
Pool pump leaks typically originate from a few key areas. Addressing these common issues first will solve most problems.
Pump Lid O-Ring Issues
The most common cause of a pool pump leaking water is a faulty or improperly seated o-ring on the pump's strainer lid. This o-ring creates a watertight seal, preventing air from entering the pump and water from escaping. If it's cracked, dry, pinched, or dirty, it will leak.
How to Fix a Leaking Pump Lid O-Ring
- Turn off Power: Disconnect all power to the pump at the breaker.
- Remove Lid: Unscrew or unclamp the pump strainer lid.
- Inspect O-Ring: Carefully remove the o-ring from its groove. Look for cracks, tears, flattening, or dirt buildup.
- Clean: Clean the o-ring and its groove thoroughly with a soft cloth. Remove any debris.
- Lubricate: Apply a silicone-based lubricant specifically designed for pool o-rings. This helps maintain flexibility and creates a better seal. Do not use petroleum-based lubricants, as they can degrade rubber.
- Reinstall: Place the o-ring back into its groove, making sure it sits evenly and is not twisted.
- Tighten Lid: Replace the lid and tighten it securely. Do not overtighten, as this can pinch the o-ring or crack the lid.
- Test: Turn the power back on and observe for leaks.
If the o-ring is damaged, replacement is necessary. For Hayward PowerFlo and TurboFlo above ground pumps, the Pool Ruler Hayward SPX1500P (2 Pack + Grease) is a top pick. This kit provides two o-rings and grease, allowing for an immediate fix and a spare for future maintenance. For Pentair pump owners, the Pool Ruler 350013 Pentair Pump Lid O-Ring 2 Pack + Lubricant or the 357255 Lid O-Ring for Pentek Pentair Pool and Spa Pump Replacement are excellent choices, offering precise fits for various IntelliFlo and WhisperFlo models. Always confirm the exact part number for your specific pump model.
Worn-Out Shaft Seal
A leak coming from the area between the pump's wet end (where water flows) and the motor (the electrical component) usually indicates a failing shaft seal. This is a common wear-and-tear item because it protects the motor from water while allowing the impeller shaft to spin. Over time, chlorine and friction can degrade the seal material.
How to Fix a Leaking Shaft Seal
Replacing a shaft seal is a more involved repair than replacing an o-ring. It requires disassembling the wet end of the pump and separating it from the motor. While a DIY project for many handy homeowners, it does require careful attention to detail and proper reassembly. This is often worth the cost to avoid potential motor damage if you are unsure.
Loose or Damaged Drain Plugs
Many pool pumps have one or two small drain plugs, usually located at the bottom of the pump housing. These are used to drain water from the pump for winterization or maintenance. If these plugs are loose, cracked, or missing their o-rings, they will leak.
How to Fix Leaking Drain Plugs
- Turn off Power: Make sure the pump is off and unplugged.
- Inspect Plugs: Check the drain plugs for tightness.
- Examine O-Rings: If the plugs have o-rings, remove them and inspect for damage.
- Clean and Replace: Clean the plugs and o-rings. Replace any damaged o-rings.
- Tighten: Reinsert the plugs, making sure they are snug.
If the plug itself is cracked, you will need to replace it with a new one designed for your pump model. These are inexpensive parts.
Leaking Union Fittings
Union fittings connect the pump to your plumbing lines. They typically consist of a threaded nut, two pipe ends, and an o-ring or gasket in between. Leaks at these points are common, especially if the unions were not tightened properly during installation or if the o-rings have deteriorated.
How to Fix Leaking Union Fittings
- Turn off Power: Power down the pump.
- Inspect: Feel around the union nuts for moisture. You might see calcium buildup from a long term leak.
- Tighten: Use a wrench or channel locks to gently tighten the union nut. Do not overtighten, as this can crack the plastic.
- Check O-Ring: If tightening does not stop the leak, loosen the union completely. Remove and inspect the o-ring or gasket inside. This involves cutting out the old union and gluing in a new one, which might require a professional if you are not comfortable with PVC plumbing.
Threaded Pipe Fittings
Aside from unions, other threaded fittings connect pipes directly into the pump's housing. These connections rely on thread sealant (like Teflon tape or pipe dope) to prevent leaks. If the sealant was applied incorrectly, or if the connection has vibrated loose over time, water can seep out.
How to Fix Leaking Threaded Pipe Fittings
- Turn off Power: Shut off the pump and isolate the water flow to that section if possible.
- Identify Leak: Pinpoint the exact fitting that is leaking.
- Disassemble: Carefully unscrew the leaking fitting. Be prepared for some water to drain out.
- Clean Threads: Clean old thread sealant from both the pipe and the pump housing threads.
- Apply New Sealant: Apply 3-5 wraps of new Teflon tape in a clockwise direction (as you would tighten the fitting). Alternatively, use a suitable pipe dope.
- Reassemble: Screw the fitting back into place, hand-tightening first, then a quarter to half turn with a wrench. For more tips on maintaining your pool equipment, you might find our guide on How to Set Up an Above Ground Pool Pump Correctly helpful.
Cracked Pump Housing (Wet End)
A crack in the plastic housing of the pump's wet end is a more serious issue. These cracks can occur due to freezing temperatures if the pump was not properly winterized, excessive vibration, or physical impact. A housing crack will almost always result in a significant leak.
How to Fix a Cracked Pump Housing
Minor cracks might be temporarily patched with epoxy specifically designed for plastics, but this is rarely a long term solution. For significant cracks, the wet end of the pump often needs to be replaced entirely. This involves ordering a new wet end housing kit for your specific pump model and transferring internal components like the impeller. The cost of a new wet end assembly can range from $150-$400, not including labor if a professional installs it.
If the crack is extensive or near the motor, replacing the entire pump might be more cost effective. A new pool pump can cost $400-$1500 or more, depending on its size and features. Read our guide on the Cost to Replace a Pool Pump for more details.
Impeller Housing Gasket or O-Ring
Inside the wet end of the pump, there is a gasket or o-ring that seals the impeller housing (also known as the diffuser or volute) to the main pump body. If this seal fails, you might see water leaking from the seam of the wet end, but not from the motor side (which would indicate a shaft seal). This repair requires disassembling the wet end, similar to a shaft seal replacement.
Motor Seal Plate Gasket
Between the pump's wet end and the motor's seal plate, there is another gasket. This gasket prevents water from leaking out from this junction. A leak here is less common than a shaft seal leak but indicates a failed gasket. Replacing it involves separating the wet end from the motor and installing a new gasket.
When to Call a Professional Pool Technician
While many pool pump leaks are DIY-friendly, some situations warrant calling a professional:
- Unidentified Leak: You cannot find the source of the leak despite thorough inspection.
- Complex Repairs: Repairs like replacing a cracked pump housing or performing extensive plumbing work are beyond your comfort level.
- Motor Damage Suspected: If water has entered the motor housing, do not attempt to run the pump. Getting an estimate before work begins is always a good idea.
Preventing Future Pool Pump Leaks
Regular maintenance can significantly reduce the chances of your pool pump developing leaks:
- Inspect O-Rings: Annually inspect and lubricate all o-rings (lid, drain plugs, unions) with a silicone-based lubricant. Replace any that show signs of wear.
- Winterize Properly: Make sure your pump is completely drained and protected from freezing temperatures if you live in a cold climate. Freezing water expands and can crack pump housings and fittings.
- Check Tightness: Periodically check the tightness of union fittings and drain plugs.
- Monitor Vibration: Excessive pump vibration can loosen fittings and accelerate wear on seals. If your above ground pool pump is making noise, investigate the cause.
Taking a few minutes for preventative care can save you significant time and money on repairs down the road. Addressing a pool pump leak quickly protects your equipment and keeps your pool running smoothly.
